| Unshielded Round Pin 1*4 RJ45 Modular Jack Connector Yellow Housing |
Product Specification:
| Specification: | RJ45 Modular Jack | Cross Part NO: | 52F-14880011X01S |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | ﹣40℃ to +85℃ |
| 10. Storage Temperature | ﹣40℃ to +85℃ |
| 11. Housing Material | PBT/PA66/PA46 |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| 13. Contact Mating Area Plating | Gold/3u"/6u"/15u"/30u" |
| 14. Shell Material | Brass |
| 15. Shell Plating | Ni Plating |
Competitive advantage:
Our company has a variety of appearance and a variety of internal schematic products, high quality, customer first, 0 defects, 100% testing, shorten production time, our products have been exported to all over the world, and have achieved good certification If you have any questions, please contact us immediately by email or trade manager.
Professional certification
ISO 9001:2008
UL certification
- Reach Cetitaction
RoHS Compliance
Active environmental policy
Why choose us :
14Years Experience
Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

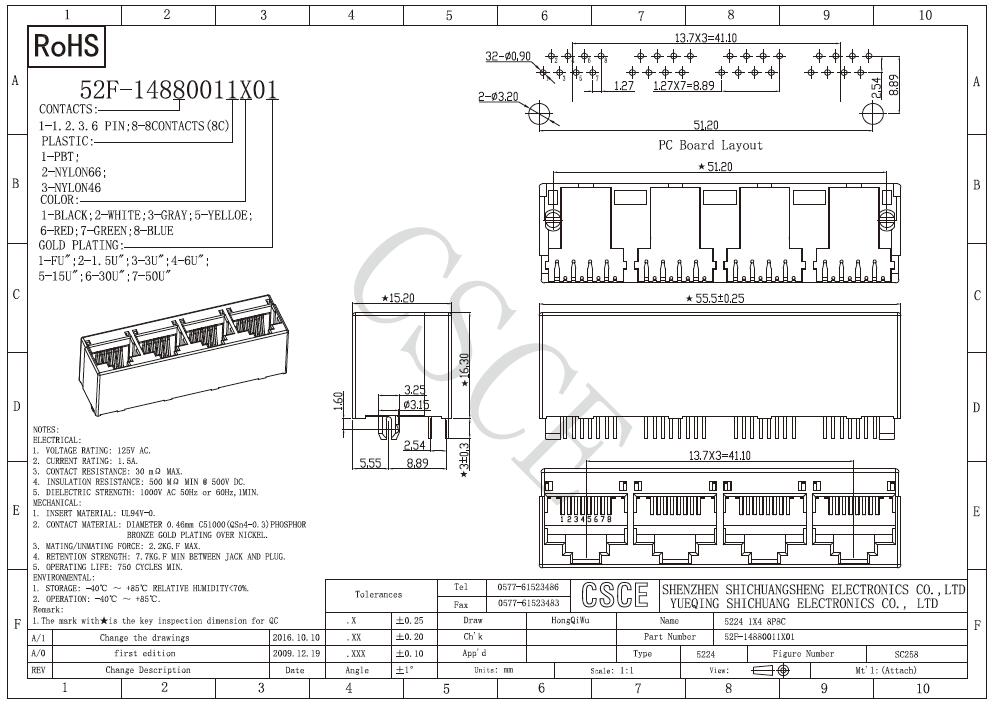

Product Drawing:
