| 5224 Series 1x8 RJ45 Modular Jack Connector Whitout Leds Unshielded 8P8C Vertical Entry |
Product Specification:
| Specification: | RJ45 Modular Jack | Cross Part NO: | 52F-18880011X01S |
| Material: | UL94V-0 | Samples: | Available 2-3 Pcs |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. etention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | ﹣40℃ to +85℃ |
| 10. Storage Temperature | ﹣40℃ to +85℃ |
| 11. Housing Material | PBT |
Why choose us
- Competitive price , and in time delivery well-selling in both domestic and foreign markets
- Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
- Specializes in the development , design , production and sale of communication network connectors .
- Have a strong research and development ability for a new product
- Equipment and manufacturing ability for would
Our Services
1. Factory price
• Own production workers, production equipment and engineering technology team
• New original with low and discount price
2. Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
3. Customer Friendly Services
• Support in many Languages website, more convenience & fast services.
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 5-7 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer
2. Good quality, competitive price with best service.
3. Available for ODM/OEM order.

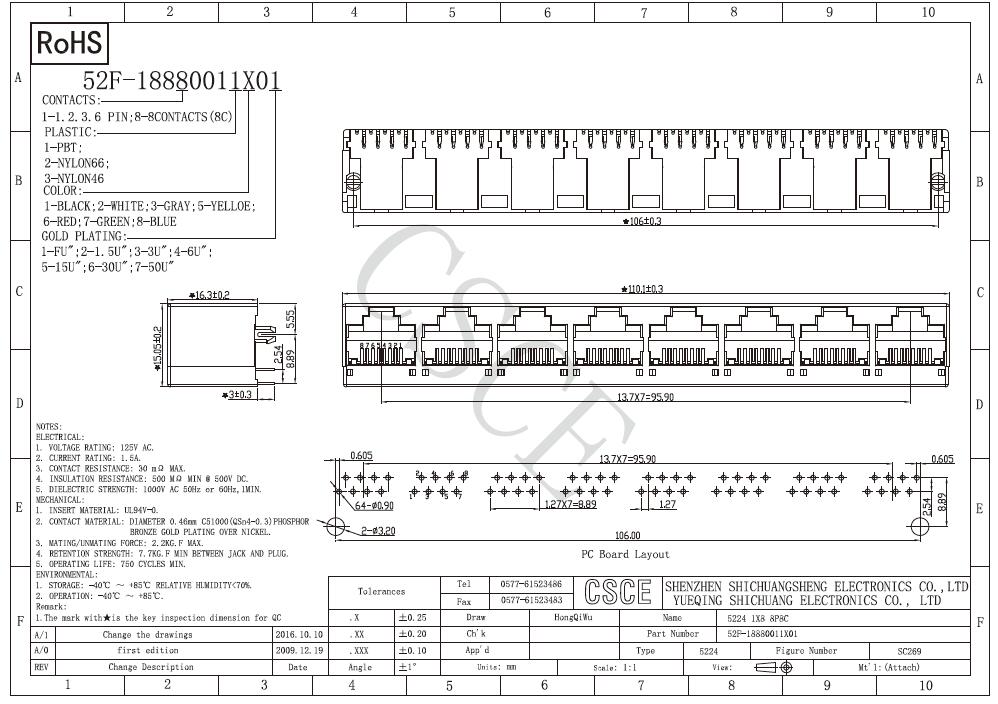

Product Darwing:
Product Tags:
|
|
5224 Series 1x8 RJ45 Modular Jack Connector Whitout Leds Unshielded 8P8C Vertical Entry Images
|
