180 Degrees 8P8C RJ45 Female Port , RJ45 Modular Jack 1.5A Rated Current

Name: 180 Degrees 8P8C RJ45 Female Port RJ45 Modular Jack 15A Rated Current
Brand: CSCE
Price: 1 USD

China 180 Degrees 8P8C RJ45 Female Port , RJ45 Modular Jack 1.5A Rated Current wholesale

Brand Name : CSCE

Model Number : 52B-188121X01S

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen ， China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Type : RJ45

Application : PCB

Pin : 8pin

Rated voltage : 125VAC

Rated current : 1.5A

Operating temperature : -40℃ to 85℃

Contact Now

180 Degrees 8P8C RJ45 Female Port , RJ45 Modular Jack 1.5A Rated Current

Product Specification:

Specification:	RJ45 Modular Jack	Cross Part NO:	52B-188121X01S
Mounting:	Thru-hole R/A	Samples:	Available 2-3 Pcs
Latch:	Tab up	Files:	PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating	1.5A
2. Voltage Rating	125v
3. Contact Resistance	30milliohm Max
4. Withstand Voltage	1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance	500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force	2.2KG.F MAX.
7. Retention Strength	7.7KG.F MIN Between Jack And Plug
8. Operating Life	750 Cycles MIN.
9. Operation Temperature	﹣40℃ to +85℃
10. Storage Temperature	﹣40℃ to +85℃
11. Housing Material	PBT
12. Contact Material	DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating	Gold/3u"/6u"/15u"/30u"

Competitive advantage:
Our company has a variety of appearance and a variety of internal schematic products, high quality, customer first, 0 defects, 100% testing, shorten production time, our products have been exported to all over the world, and have achieved good certification If you have any questions, please contact us immediately by email or trade manager.

Professional certification

ISO 9001:2008
UL certification
- Reach Cetitaction
RoHS Compliance
Active environmental policy

Why choose us :

14Years Experience
Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

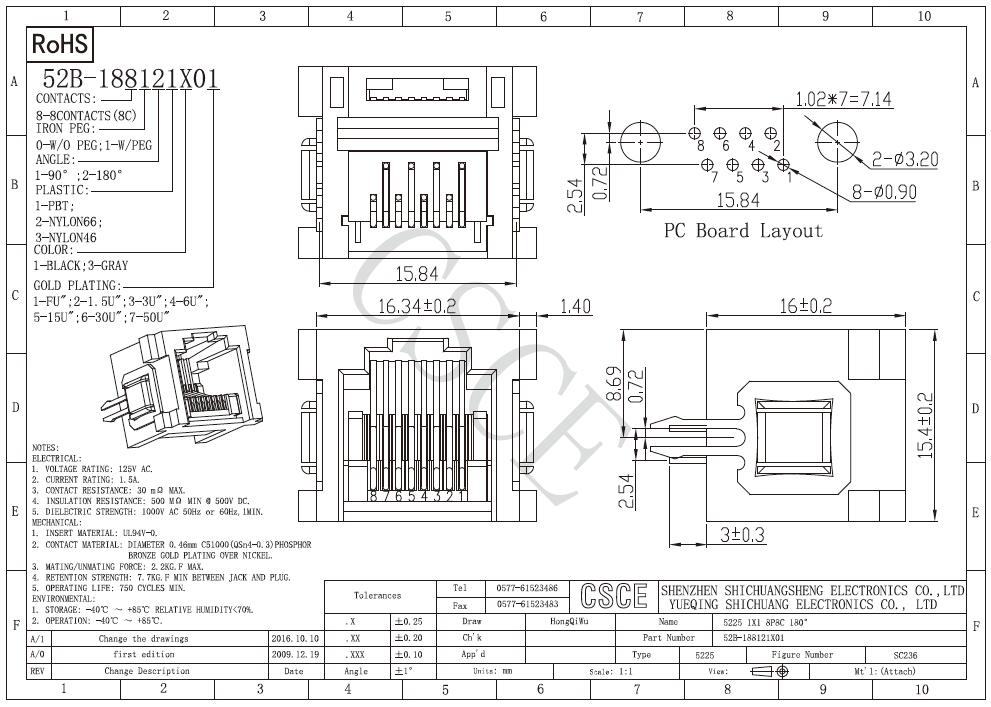

Product Drawing :
