Shielded Without LED 8P8C Modular Jack Ethernet 2x5 Ports RJ45 Female Connector
Product Specification:
| Specification: | Stacked RJ45 | Cross Part NO: | 59B-35880111X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | -40℃ to +85℃ |
| 10. Storage Temperature | -40℃ to +85℃ |
| 11. Insert Material | UL94V-0 |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
14 Years Experience
Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.
OEM Services
For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
Our Services
Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/Money Gram
Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.
Feedback:Since your feedback is very important to our bushiness's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/Money Gram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.

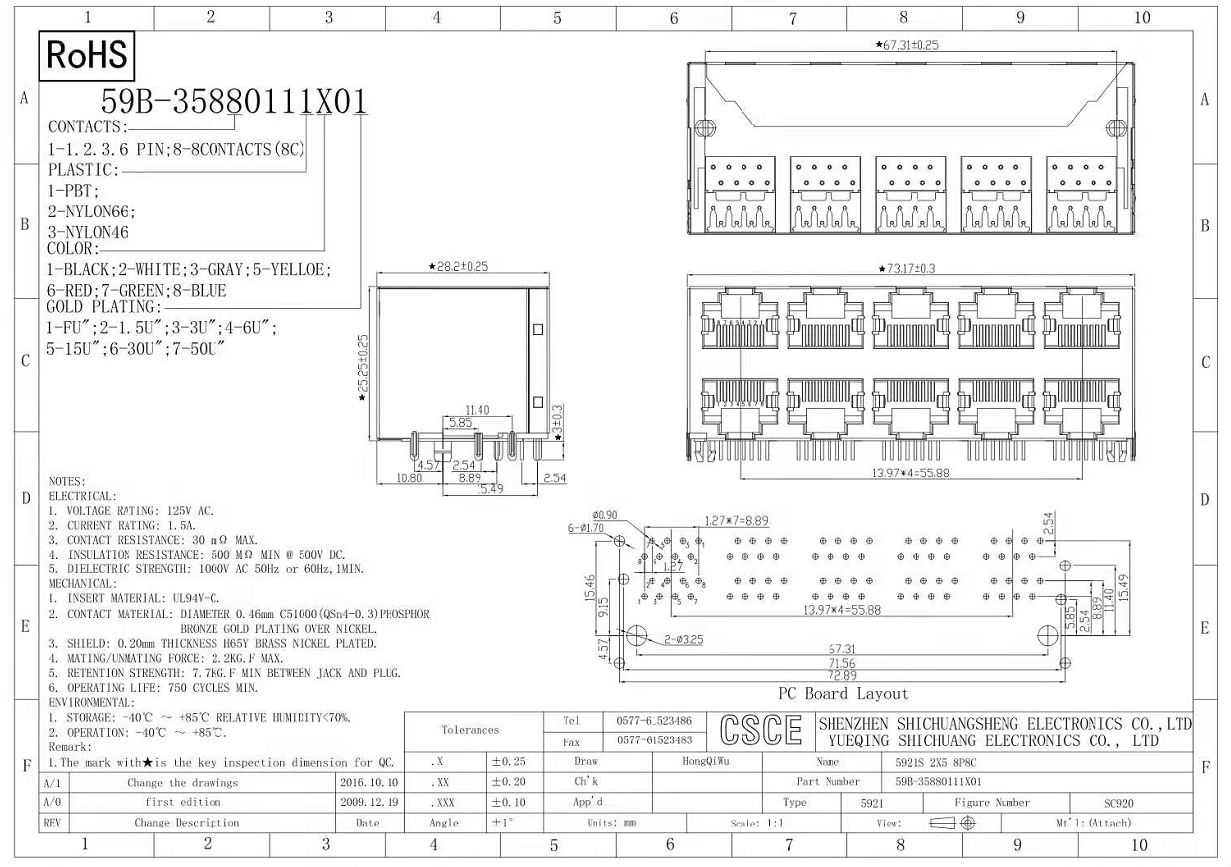

Product Drawing
