RJ45 Connectors RJ45 2*1 Ethernet RJ45 Modular Female Pcb Jack With Led
Product Specification:
| Specification: | Stacked RJ45 | Cross Part NO: | 59C-31882111X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab down | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | -40℃ to +85℃ |
| 10. Storage Temperature | -40℃ to +85℃ |
| 11. Housing Material | UL94V-0 |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
Certification
• ISO 9001:2000,
• ISO14001
• Active Environmental Policy.
Have R&D dept
• OEM Service Offered, Design Service Offered.
• Engineer Can Design Products As You Need,Developer Tooling As Customer Require.
Why choice CSCE
1. Almost 14 years experience in electronic components area.
2. All new&original goods are offered 360 days warranty.
3.100% QC inspection,best production capability ,best quality control, Best Service , competitive price.
4. A variety of channels to satisfy various demands including military and industrial product.
5. Sufficient stock on your urgent demand.
6. Timely reply within 2 hours during working time.
Our Services
- Factory price
• Own production workers, production equipment and engineering technology team
• New original with low and discount price
- Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
- Customer Friendly Services
• Support in many Languages website, more convenience & fast services.
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 5-7 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/Money Gram
Q: Why choose our company?
A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer
2. Good quality, competitive price with best service.
3. Available for ODM/OEM order.

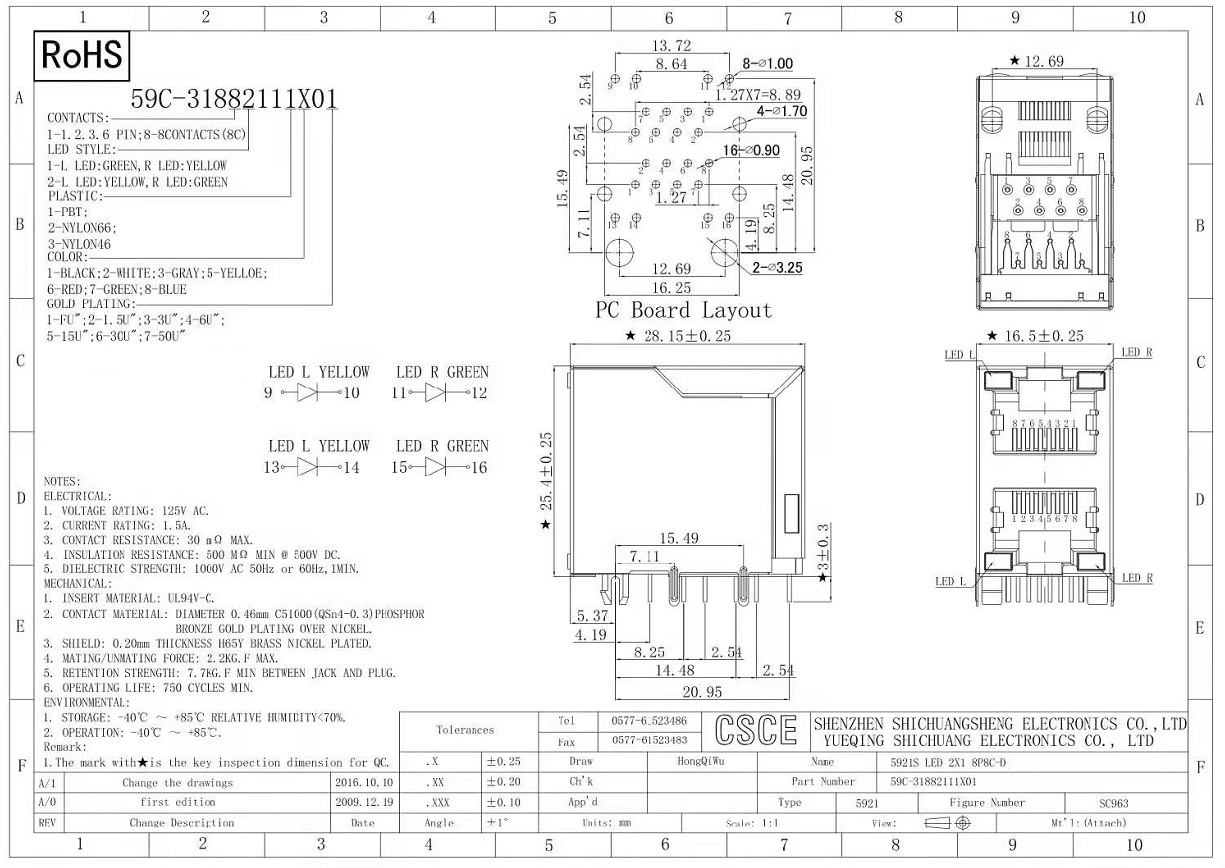

Product Drawing
Product Tags:
|
|
RoHS CE Stacked RJ45 Connectors 2*1 Ethernet RJ45 Modular Female Pcb Jack Images
|
